Hot Selling BLDC Motor 48-72V 1000 Watt Wheel Hub Motor 10 Inch Electric Scooter and Motorcycle Motor Electric Bicycle Motor
Hot Selling BLDC Motor 48-72V 1000 Watt Wheel Hub Motor 10 Inch Electric Scooter and Motorcycle Motor Electric Bicycle Motor
Regular price
Rs. 9,999.00
Regular price
Rs. 15,999.00
Sale price
Rs. 9,999.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Basic Info.
Model NO.
10INCH 1000W
Excitation Mode
Excited
Function
Driving
Casing Protection
Protection Type
Number of Poles
26
Structure and Working Principle
Brushless
Certification
ISO9001, CCC
Brand
Ymmotor
Product Name
Ym-Xf Motor
Operating Voltage
48-72V
Rated Power
1000W
Speed
45km/H
Brake System
Disc Brake, Drum Brake
Color
Black
IP Rating
IP 67
Wheel Rim Specification
10*2.15;10*3.0
Torque
80-100nm
Transport Package
Carton Package
Specification
32*32*32
Product Description

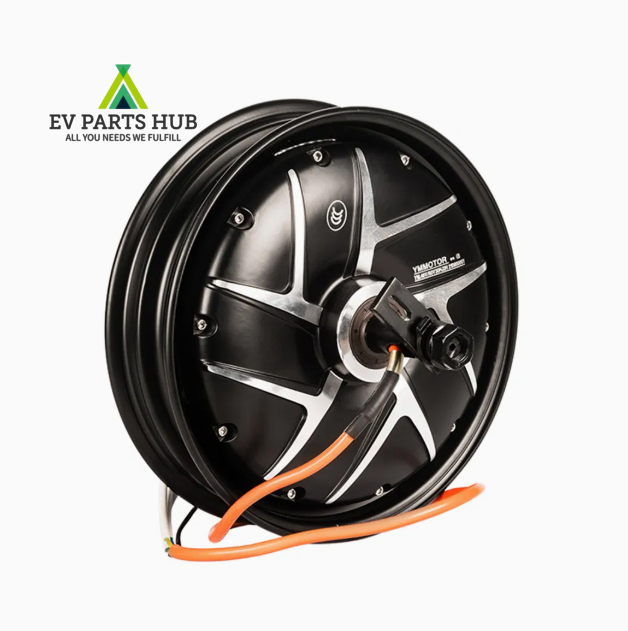

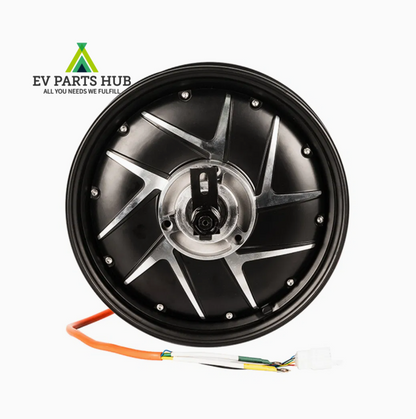

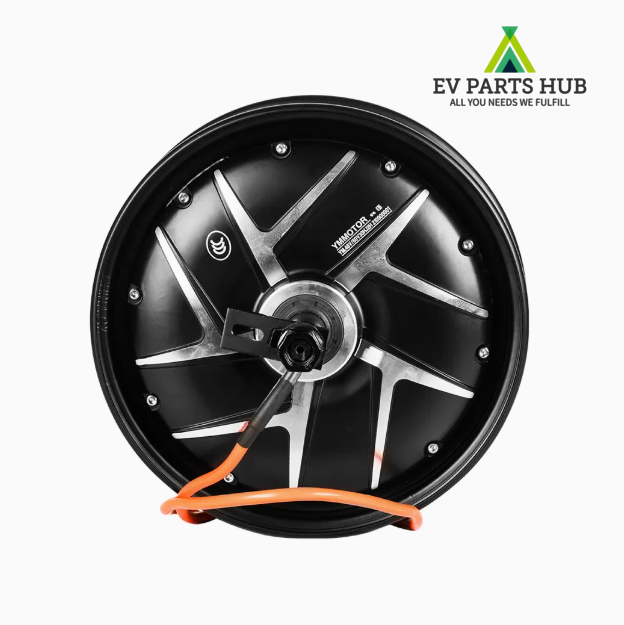

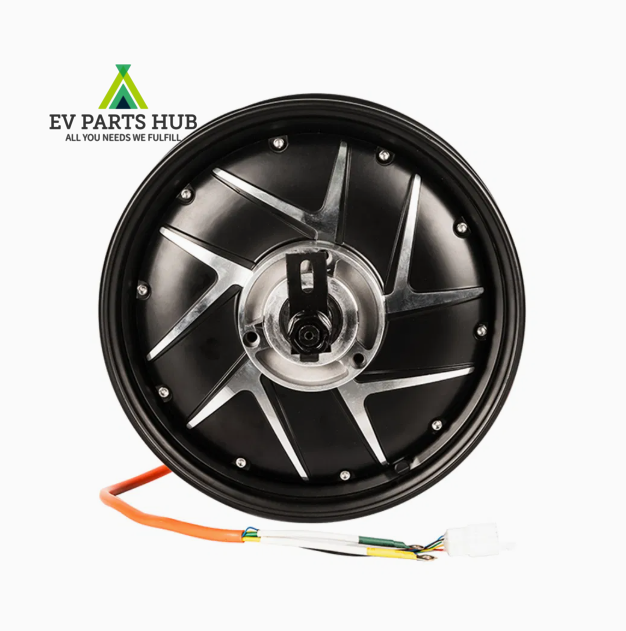

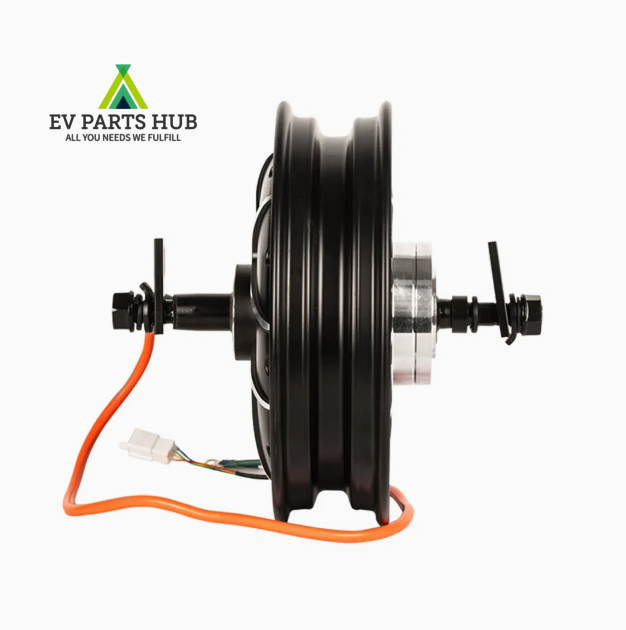

YM 10inch High efficiency Hub Motor
| Motor Type | Brushless Direct Current Motor(BLDC Motor) |
| Axle Configuration | Double |
| Wheel Rim | 10 inch |
| Rated Speed | 40-45km/h |
| Voltage | 48-72V |
| Magnet Height | 27mm |
| RPM | 550 |
| Brake System | Drum Brake/Disc Brake |
| Hall Sensors | 1 |
| Hall Sensor Phasing | 120° |
| Efficiency | ≥90% |
| Rated Out Power | 800w |
| Torque | 80-100Nm |
| Number of Pole Pairs | 26 |
| Cross Section of Phase Wire | 3mm² |
| Width Of Rim | 72mm(3.0-10/3.5-10) |
| Drop-out(Rear Fork width for installation) | 200mm |
| Waterproof Grade | IP67 |
| Color | Black/white etc. |
| Package | Carton |
